SW-1210SG Servo 32Kg 0,13s HV Alu Coreless Steel Gear WP

SAV-SW1210SG

SW-1210SG Servo 32Kg 0,13s HV Alu Coreless Ståldrev WP.

1 060,00 kr
Inkl. moms Beräknas skickas inom 1-2 vardagar
Kvantitet
Sista produkten i lager



Snabba leveranser



Teknisk support



Säker betalning

Beskrivning

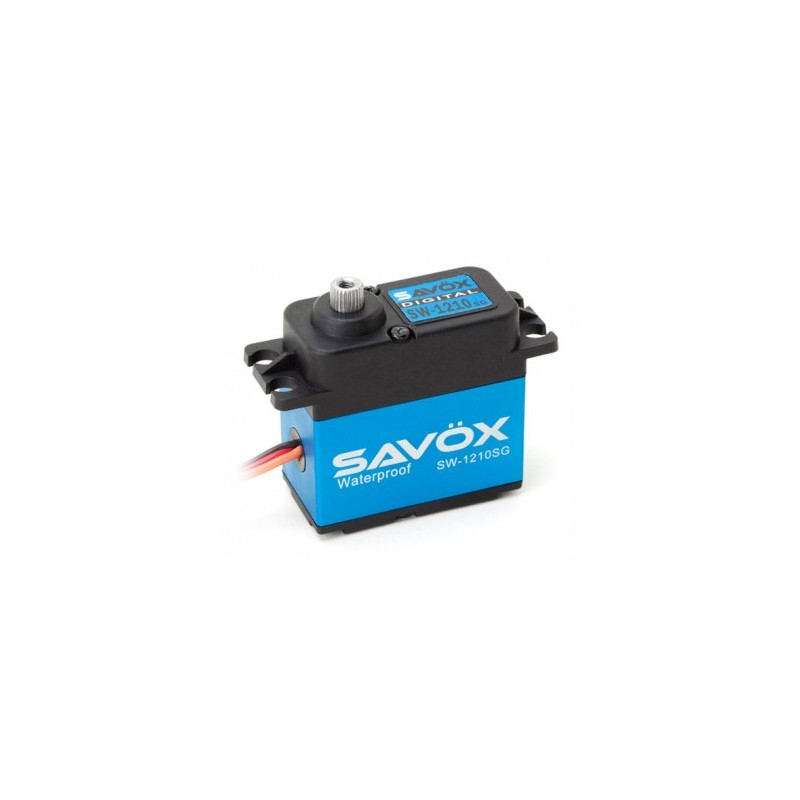

SAVÖX SW-1210SG - Monster Torque High Voltage Water Proof Servo

The SW-1210SG is the premier waterproof digital servo in the Savox Lineup. This coreless servo provides great torque and is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.

Features:
  • High Voltage
  • Strong unique steel gears provide durability and assurance
  • Waterproof construction for harsh elements
  • Ideal for cars, trucks and boats subject to water or snow

Specifications:
  • Torque @6V: 20kg/cm
  • Torque @7.4V: 32kg/cm
  • Speed @6V: 0.15 sec/60 deg
  • Speed @7.4V: 0.13 sec/60 deg
  • Dimensions L x W x H: 40.6 x 20.7 x 42mm
  • Weight: 71g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 120mA @6.0V, 150mA @7.4V
  • Stall Current (at locked): 6000mA @6.0 V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 150 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
Produktdetaljer
SAV-SW1210SG
1 Produkt
