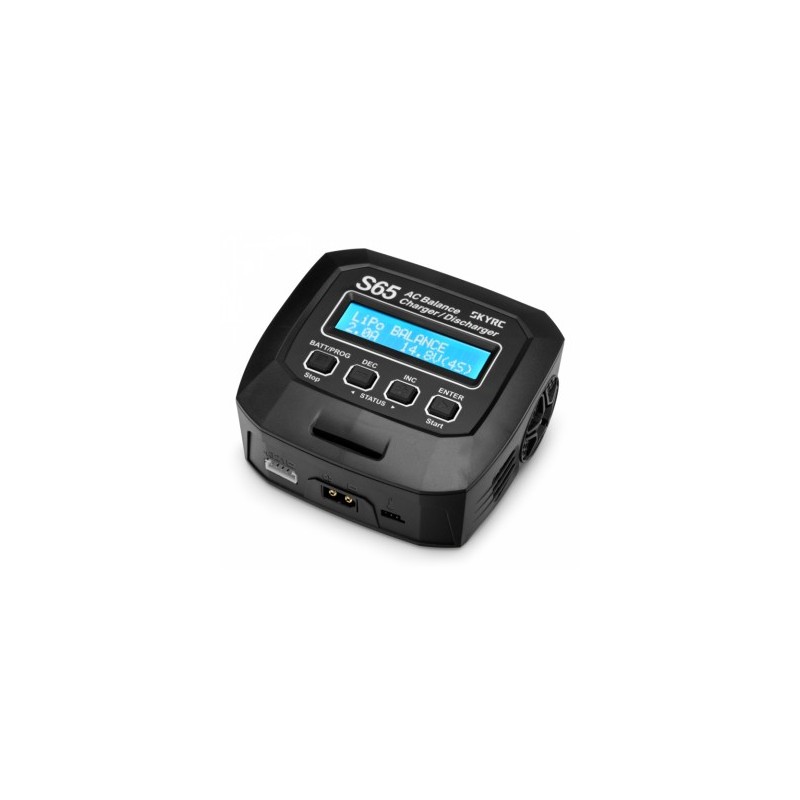

SkyRC S65 AC Charger/Discharger
This AC Professional Charger/Discharger stands out for its angular design and compact size by packing a big power of 65 watts into such a small case. Compatible with a full range of the most popular battery types, including the new generation LiHV, the S65 keeps your batteries powered up with 6-amps of charging power.
AGM & Cold Charge Modes for PB BatterySkyRC S65 can charge AGM battery and also can be used for charging PB battery at very low temperatures.
Embedded XT60 Battery ConnectorBy embedding the XT60 battery connector in the charger, it gets more convenient & safe for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it.
Smart & Efficient Cooling SystemTemperature controlled 7000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.
Higher Accuracy with Three Decimals for Battery VoltageThe charger firmware is highly optimized by displaying the battery voltage with three decimals during the process of charging & battery voltage measuring.
This product is suitable for charging and discharging LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. For Pb battery, AGM Charge and Cold Charge mode are available.
Size and Weight:
- Case Material: Plastic
- Case Size: 118 x 115 x 45mm
- Weight: 315g
Power:
- Input Voltage: AC 100-240V
- Charge Wattage: 65W
- Discharge Wattage: 10W
Battery Types/Cells:
- LiPo/LiFe/LiIon/LiHV: 2-4 cells
- NiMH/NiCd: 6-8 cells
- Pb: 3-6 cells
Battery Capacity Range:
- NiMH/NiCd: 100-50000mAh
- LiPo/LiIon/LiFe/LiHV: 100-50000mAh
- Pb: 100-50000mAh
Charge and Discharge:
- NiMH/NiCd: Delta peak detection
- LiPo: 4.18-4.25V/cell
- LiFe: 3.58-3.7V/cell
- LiIon: 4.08-4.2V/cell
- LiHV: 4.25-4.35V/cell
- Charge Current: 0.1A-6.0A
- Discharge Current: 0.1A-2.0A
- Balance Cells: 2-4 cells
- Balance Current: 1000mA/cell Max
- Safety Timer: 1-720minutes / off
- Charge Method: CC/CV for lithium types and lead (Pb) batteries Delta-peak Sensitivity for NiMH/NiCd
Discharge Cut-off Voltage:
- NiMH/NiCd:0.1-1.1V/cell
- LiPo:3.0-3.3V/cell
- LiFe:2.6-2.9V/cell
- LiIon: 2.9-3.2V/cell
- LiHV: 3.1-3.4V/cell
