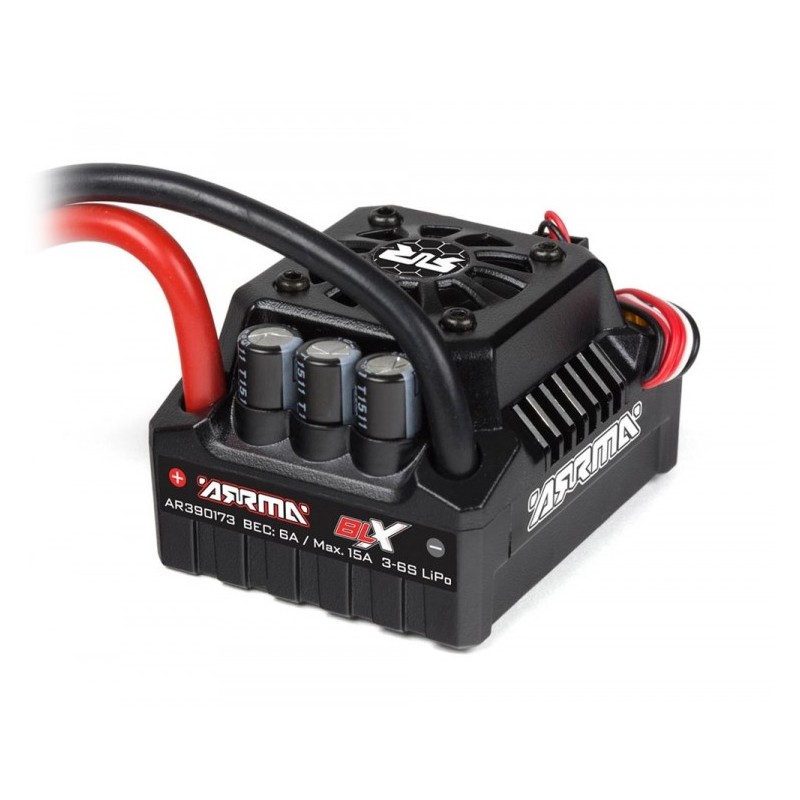

ARRMA BLX200 BRUSHLESS 1/8 SCALE MT 6S ESC

The BLX200 150A waterproof ESC provides consistent power control and is 6S LiPo ready. Fitted with super-reliable XT90 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX200 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management. The BLX200 ESC features user adjustable parameters that include the punch setting, brake force strength and motor rotation direction. These parameters can be set simply using the setup button located on the ESC switch. The fitted 10AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

Recommended battery specification:

• 3000mAh - 35C minimum - Per battery pack (battery specification dependent on model/usage)

Features:

• 3S to 6S LiPo Compatibility
• 150A Continuous Current Handling
• 6V/6A BEC Circuit
• 5 Punch Level Settings
• 3 Brake Strength Settings
• Adjustable Motor Rotation Direction
• Over-Temperature Protection
• 2-Stage LiPo Cut Off
• Genuine AMASS XT90 Battery Connectors

Includes:

• 1x BLX200 ESC
• 2x Female AMASS XT90 Connectors (for battery packs)
• 1x Instruction Manual

Specs:

• POWER TYPE: BLX Brushless Extreme Performance
• ESC TYPE: 150AMP Continuous current capacity
• Battery usage: 4S LiPo (14.8) up to 6S LiPo (22.2V) Pack maximum
• Low Voltage Cut-Off (LVC): 3.2V per cell
• Thermal Protection Temperature: 105°C
• Over-Voltage Protection: Over 6S LiPo (22.2V)
• Length: 57.5 mm
• Height: 38.9 mm
• Width: 47.1 mm
• Weight: 218 g
• Capacitor Length: 41 mm
• Receiver Wire Length: 220 mm
• Battery Wire Length: 220 mm
• Motor Wire Length (Including Connector): 135 mm
• Switch Length: 21.3 mm
• Switch Width: 13.1 mm
• Switch Height: 16 mm
• Motor Bullet Connector Size: 5.5 mm
• Wire Specifications: 10AWG
• ESC Battery Connector Type: XT90
