TRAXXAS

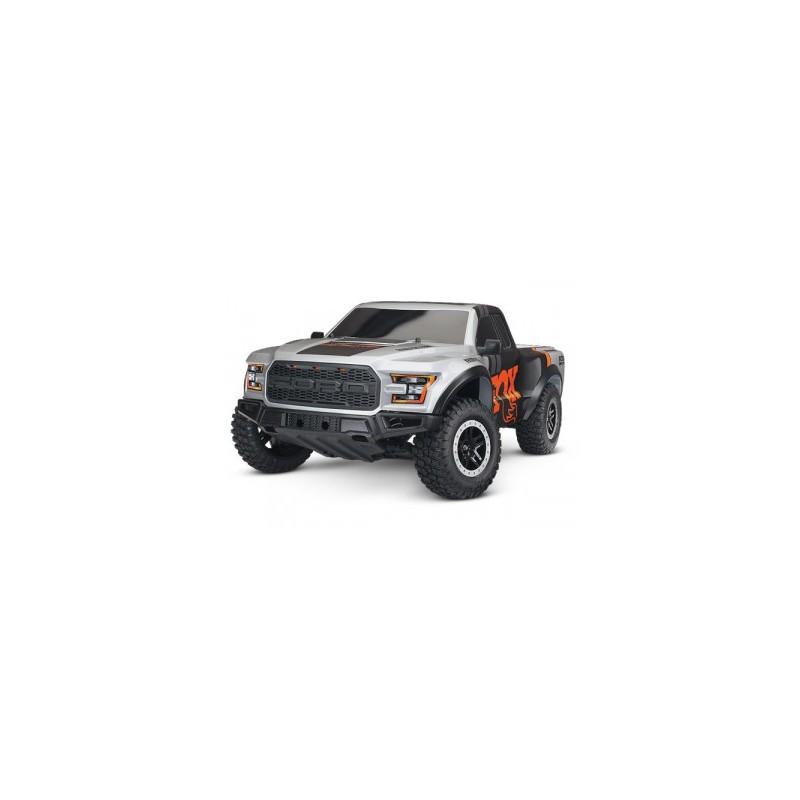

Ford F-150 Raptor 2WD

All-Terrain Excitement

The new 2017 Ford® Raptor replica from Traxxas takes you off-road with a whole new level of scale realism. The sleek Raptor body is fully detailed with an injection molded nylon composite grill and front bumper to truly capture the depth and detail of Ford’s original design. Integrated hood vents and side mirrors complete the look. The heavy-duty body is extra tough for all your off-roading adventures.

QUICK FEATURES ON THE FORD F-150 RAPTOR REPLICA (#58094-1)

• Officially licensed paint and graphics, Ford F-150 Raptor Replica body
• TQ 2.4GHz Radio System
• Traxxas' exclusive patented Training ModeTM
• 4-amp DC Peak Detecting Fast Charger
• Traxxas Power Cell NiMH Battery with iDTM
• Titan® 12-Turn 550 modified motor
• XL-5 waterproof electronic speed control
• Water-sealed receiver box and steering servo
• Metal gear Magnum 272™ transmission
• Revo®-spec torque-control™ slipper clutch
• Adjustable steel turnbuckles with captured rod ends
• Scale ProGraphix® truck body
• The tires are mounted on satin-finish 2.2" Slash wheels
• Powder coated progressive rate white springs
• The ESC and receiver mounted directly to chassis
• Included optional 23-tooth pinion gear
• FORD F-150 RAPTOR (#58094-1) SPECS
• Length: 568 mm
• Front Track: 296 mm
• Rear Track: 296 mm
• Weight: 2.16 kg
• Height (overall): 214 mm
• Wheelbase: 335 mm
• Front Shock Length: Long
• Rear Shock Length: XXLong
• Front Tires: Scale All-Terrain; 2.2"
• Rear Tires: Scale All-Terrain; 2.2"
• Front Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
• Rear Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
• Speed Control Type: Waterproof XL-5 ESC
• Motor (electric): Titan® 12T 550 (12-turn)
• Gear Ratio (internal): 2.72 (final drive: 12.58)
• Differential Type: Steel Composite Planetary
• Gear Pitch: 48P
• Transmission: Metal Gear Magnum 272™
• Steering: Bellcrank
• Chassis Type: Modified Tub
• Chassis Material: Composite Nylon
• Center Ground Clearance: 89 mm
• Top Speed: 48+kmh*
• Skill Level: 1
• Radio System: TQ™ 2.4GHz (2-channel)
• Included Charger: Traxxas 4-amp DC Peak Detecting Fast Charger
• Included Batteries: Traxxas Power Cell NiMH Battery with iD™
• Required Batteries: 4 "AA" (transmitter)

* With 7-cell battery and included optional 23-tooth pinion gear.

XL-5 (WATERPROOF) ESC SPECIFICATIONS

• Input voltage: 4-7 Cells NiMH, 2-Cell (2S) LiPo
• Case Size: W31 x D55 x H15.5 mm
• Weight: 69 g
• Motor Limit:  15-turns** (540 Size) / 12-turns** (550 Size)
• On Resistance Forward: 0.007 Ohms
• On Resistance Reverse: 0.014 Ohms
• Peak Current - Forward: 100A
• Peak Current - Reverse: 60A
• Braking Current: 60A
• Continuous Current: 14A
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 127 mm
• Input Harness Wire: 26 Gauge / 228 mm
• Transistor Type: MOSFET
• PWM Frequency: 1600 Hz
• Thermal Protection: Thermal shutdown
• Low Voltage Detection: 2-Stage indicators, switchable (on and off)
• Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:

• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode*:­­­ 50% FWD, 100% brakes, 50% REV
