Traxxas Slash XL5 RTR

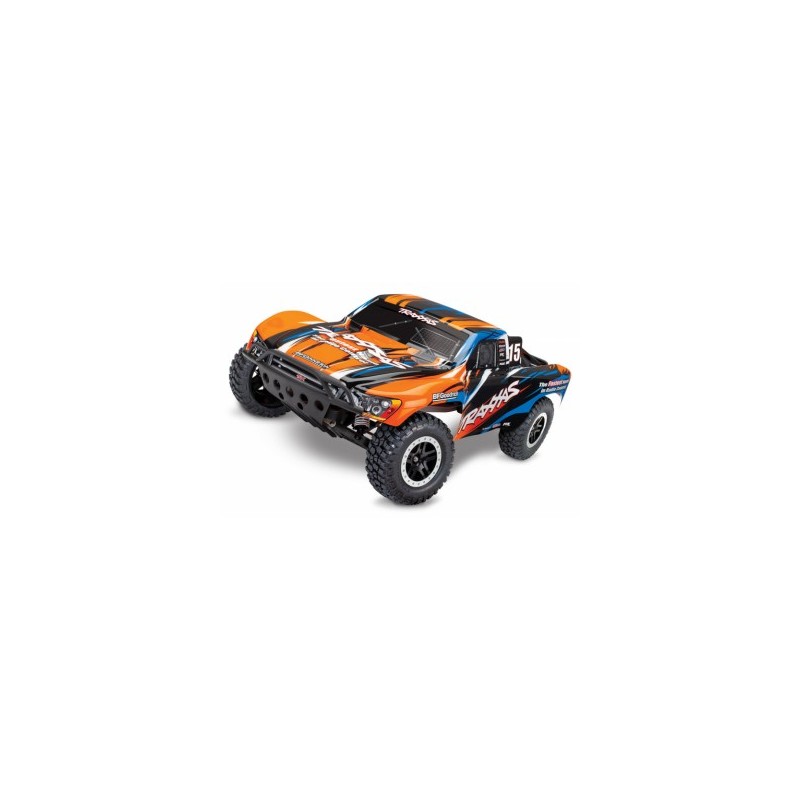

Traxxas Slash XL5 RTR Short Course 2WD Truck with Orange-X Graphics

The award-winning Traxxas Slash short-course race truck puts you in the driver’s seat for intense fender-to-fender, high-flying off-road action. Full-scale short-course race trucks embody the spirit of Traxxas RC with their extreme 900+ horsepower racing engines full-throttle, dirt-roosting power slides, giant suspension travel, and big-air jumps. The Traxxas Slash brings all the action home so you can experience the high-speed head-to-head competition at the track or in your own backyard. The rear-wheel drive Slash is purpose built to fly over jumps and rip full-throttle through the turns. Slash hangs it out for an all new way to challenge your driving skills. The 4-wheel independent suspension has been carefully tuned to replicate the real world driving and handling experience as closely as possible. The scale appearing tires provide just the right amount of bite and thick, blinding clouds of dirt roost.

QUICK FEATURES ON SLASH (#58034-1-ORNGX):

• Available in Race Replica versions with officially licensed paint and graphics
• Traxxas 4-amp 12V Peak Detecting Fast Charger
• Traxxas Power Cell NiMH Battery with iD™
• Titan® 12-Turn 550 modified motor
• XL-5 waterproof electronic speed control
• Water-sealed receiver box and steering servo
• Metal gear Magnum 272™ transmission
• Torque-Control™ slipper clutch
• Adjustable steel turnbuckles with captured rod ends
• The tires are mounted on satin-finish 2.2" Slash wheels
• Included optional 23-tooth pinion gear

• SLASH (#58034-1-ORNGX) SPECS:

• Length: 568 mm
• Front Track: 296 mm
• Rear Track: 296 mm
• Weight: 2.16 kg
• Height (overall): 214 mm
• Wheelbase: 335 mm
• Front Shock Length: Long
• Rear Shock Length: XXLong
• Front Tires: Traxxas SCT 2.2"
• Rear Tires: Traxxas SCT 2.2"
• Front Wheels: 2.2" Satin-Finish
• Rear Wheels: 2.2" Satin-Finish
• Speed Control Type: Waterproof XL-5 ESC
• Motor (electric): Titan® 12T 550 (12-turn)
• Gear Ratio (internal): 2.72 (final drive: 12.58)
• Differential Type: Steel Composite Planetary
• Gear Pitch: 48-Pitch
• Transmission: Metal Gear Magnum 272™
• Steering: Bellcrank
• Chassis Type: Modified Tub
• Chassis Material: Composite Nylon
• Center Ground Clearance: 89 mm
• Top Speed: 48+kph*
• Skill Level: 1
• Radio System: TQ™ 2.4GHz (2-channel)
• Included Charger: Traxxas 4-amp 12V Peak Detecting Fast Charger
• Included Battery: Traxxas 7-cell NiMH battery with iD™
• Required Batteries: 4 "AA" (transmitter)

XL-5 (WATERPROOF) ESC SPECIFICATIONS:

• Input voltage: ­ 4-7 Cells (4.8 to 8.4 Volts DC)
• Case Size: ­ 31 x 55 x 15.5 mm
• Weight: ­ 2.44 ounces
• Motor Limit: ­ 15-turns** (540 Size) / 12-turns** (550 Size)
• On Resistance Forward: ­ 0.007 Ohms
• On Resistance Reverse: ­ 0.014 Ohms
• BEC Voltage: ­ 6.0 VDC
• BEC Current: ­ 1A
• Power Wire: ­ 14 Gauge / 5 inches
• Input Harness Wire: ­ 26 Gauge / 9 inches
• PWM Frequency: ­ 1600 Hz
• Low Voltage Detection (LVD): ­ 2-Stage indicators, switchable (on or off)
• Thermal Protection: ­ Thermal shutdown
• Single-button setup: ­ Yes, Traxxas EZ-Set®
