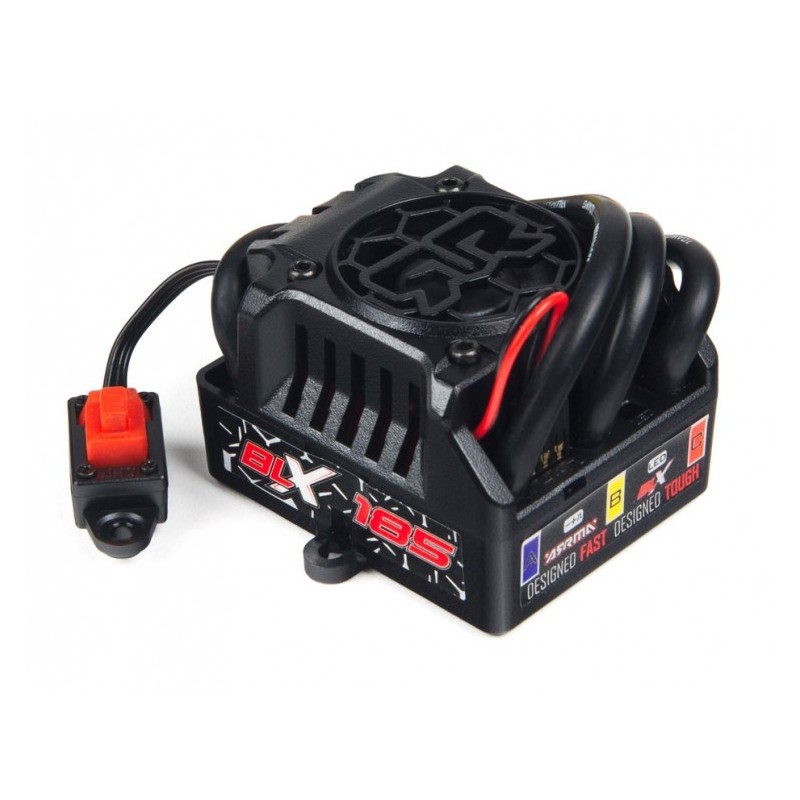

ARRMA BLX185 BRUSHLESS 8TH 6S ESC

The BLX185 150A waterproof ESC provides consistent power control and is 6S LiPo ready.

Fitted with super-reliable XT-90 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX185 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management. The fitted 10AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

• Recommended battery specification: 5000mAh - 35C minimum - Per battery pack

Fits:

• Arrma Kraton 6S
• Arrma Typhon 6S
• Arrma Senton 6S
• Arrma Talion 6S

Specs:

• POWER TYPE: BLX Brushless Extreme Performance
• ESC TYPE: 50AMP Continuous current capacity
• Battery usage: 4S LiPo (14.8) up to (6S LiPo (22.2V) Stick Pack maximum
• Low Voltage Cut-Off (LVC): 3.2V per cell
• Thermal Protection Temperature: 105°C
• Over-Voltage Protection: Over 6S LiPo (22.2V)
• ESC Length: 57.5 mm
• ESC Height: 38.9 mm
• ESC Width: 59.5 mm (Including hold-down tabs)
• ESC Weight: 196 g
• Receiver Wire Length: 200 mm
• Battery Wire Length: 165 mm
• Motor Wire Length (Including Connector): 130 mm
• Switch Length: 29.3 mm
• Switch Width: 12.8 mm
• Switch Height: 18 mm
• Motor Bullet Connector Size: 4 mm
• Wire Specifications: 10AWG
• ESC Battery Connector Type: XT-90
