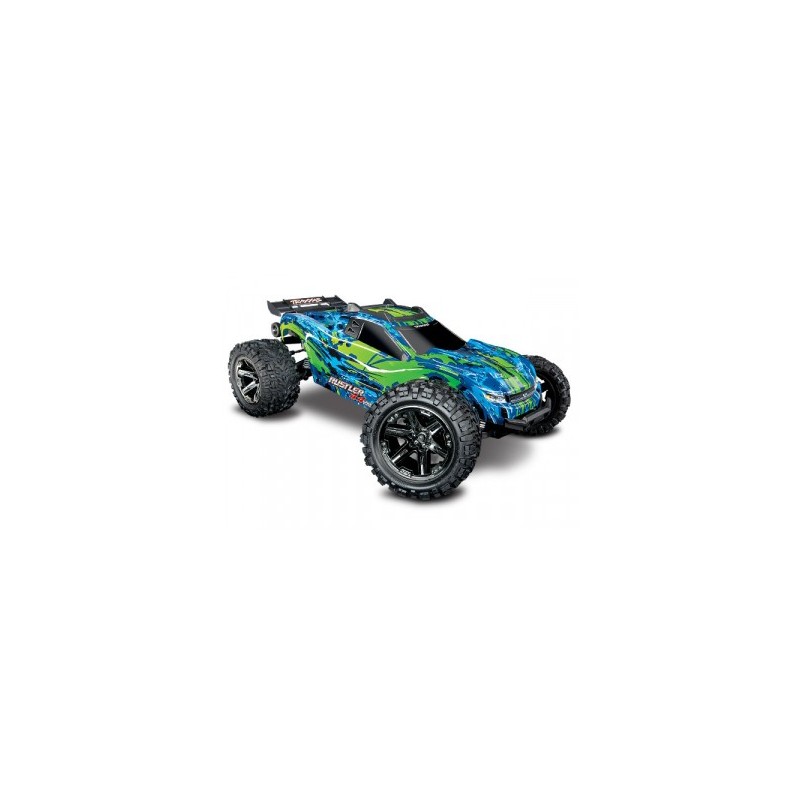

RUSTLER 4X4 VXL DATA

• Length: 477mm
• Width: 329mm
• Ground Clearance: 27mm
• Weight: 2.32 kg
• Height: 161mm
• Wheelbase: 295mm
• Front Shock Length: Long
• Rear Shock Length: XX-Long
• Tires (pre-glued): 4.5” x 2.3” (114mm x 58mm) Talon™ EXT
• Wheels: 2.8” (71mm) Black Chrome  (1/2-offset)
• Speed Control: VXL-3s™
• Motor (electric): Velineon® 3500 Brushless
• Transmission: Single speed
• Overall Drive Ratio: 13.97:1
• Differentials: Sealed, 2-gear
• Chassis Structure / Material: Composite tub
• Brake Type: Electronic
• Drive System: Shaft driven 4WD
• Steering: Bellcrank with integrated servo saver
• Radio System: TQi™ 2.4GHz 2-ch transmitter with #6533 TSM receiver
• Servo: Waterproof #2075
• Top Speed (optional gearing): 104+ kph with 3-cell LiPo and 20/54 gearing
• Skill Level: 1
• Battery Compartment: 162 x 50 x 25mm (42mm with optional battery strap (included)

Motor Specs:

• Type: Velineon 3500kV sensorless brushless
• Weight: 262g
• Length: 56mm
• Diameter: 36mm
• Connector Type: 3.5mm bullet

ESC Specs:

• Type: Velineon VXL-3s WP
• Input Voltage (cells): 4.8 – 11.1V (4–9 cells NiMH), 2S–3S LiPo
• Case Size: 56 x 39 x 33mm
• Weight: 109g
• BEC Voltage: 6V
• Reverse Delay: Yes, with lockout
• Thermal Protection: Two-stage thermal shutdown
• Ports: Auxiliary fan

What’s In The Box:

• Rustler 4X4 VXL with Velineon® VXL-3s and 3500kV motor
• Quick Start Guide
• TQi™ 2.4GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries: Rustler 4X4 VXL requires a single NiMH or LiPo battery
• Charger: Traxxas EZ-Peak Live charger (#2971) is recommended for easy and fast charging performance
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
