BIGFOOT No.1 Monster Truck

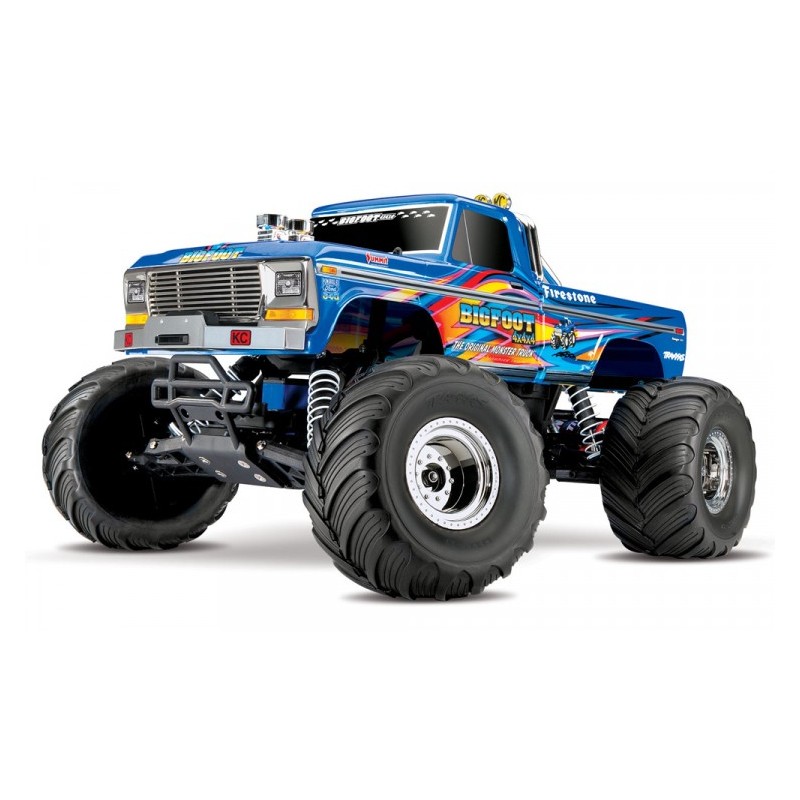

Traxxas BIGFOOT® No.1 Monster Truck - Blue with Orange/Yellow Flame Graphics

The Truck That Started it All
BIGFOOT No. 1 (the full-size truck) BIGFOOT® is “The Original Monster Truck”. This is the truck that started the monster truck phenomenon and brought car-crushing fun and excitement to fairgrounds and arenas everywhere. Traxxas faithfully captures the spirit and classic look of BIGFOOT No. 1 in amazing detail with this fully licensed replica. Relive the thrill of your first monster truck event with this classic powerhouse. Hammer the throttle for non-stop wheelies and crush the competition underneath its towering stance. Built Traxxas Tough™ for all-day fun, BIGFOOT comes out of the box fully assembled, waterproof, and Ready-To-Race®.






BIGFOOT® No. 1 (#36034-1-BLU) SPECS

• Length: 413 mm
• Front Track: 324 mm
• Rear Track: 324 mm
• Weight: 1.85 kg
• Height (overall): 241 mm
• Wheelbase: 270 mm
• Front Shock Length: Long
• Rear Shock Length: XXLong
• Front Tires: Terra-Groove 2.2"
• Rear Tires: Terra-Groove 2.2"
• Front Wheels: Bright Chrome Dish (Dual Profile)
• Rear Wheels: Bright Chrome Dish (Dual Profile)
• Electronic Speed Control: XL-5™ Electronic Speed Control
• Motor (electric): Titan® 12T 550 (12-Turn)
• Steering Servo: #2056 High Torque Waterproof
• Transmitter: TQ 2.4GHz Radio
• Receiver: #6519 3-Channel Micro
• Gear Ratio (internal): 2.72 (final drive: 12.34)
• Differential Type: Planetary
• Gear Pitch: 48-Pitch
• Transmission: Magnum 272™
• Steering: Single Point
• Chassis Type: Modified Tub
• Chassis Material: Composite Nylon
• Top Speed: 48+kph**
• Skill Level: 1
• *Battery Tray Dimensions: 138 x 46 x 26 mm
• Included Charger: 4-amp DC Peak Detecting Fast Charger
• Included Batteries: Traxxas 7-cell NiMH battery with iD™
• Required Batteries: 4 "AA" (transmitter)

*Battery expansion kit available (#3725X)
**With 7-cell battery and included optional 19-tooth pinion gear
40+kph with 6-cell battery and stock installed pinion

XL-5 (WATERPROOF) ESC SPECIFICATIONS

• Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
• Case Size: 31 x 55 x 15.5 mm
• Weight: 2.44 ounces
• Motor Limit: 15-turns** (540 Size)
• 12-turns** (550 Size)
• On Resistance Forward: 0.007 Ohms
• On Resistance Reverse: 0.014 Ohms
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5 inches
• Input Harness Wire: 26 Gauge / 9 inches
• PWM Frequency: 1600 Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal shutdown
• Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:

• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode:* 50% FWD, 100% brakes, 50% REV

*Patented **Properly Geared
