HOSS 4x4 VXL 1/10 RTR

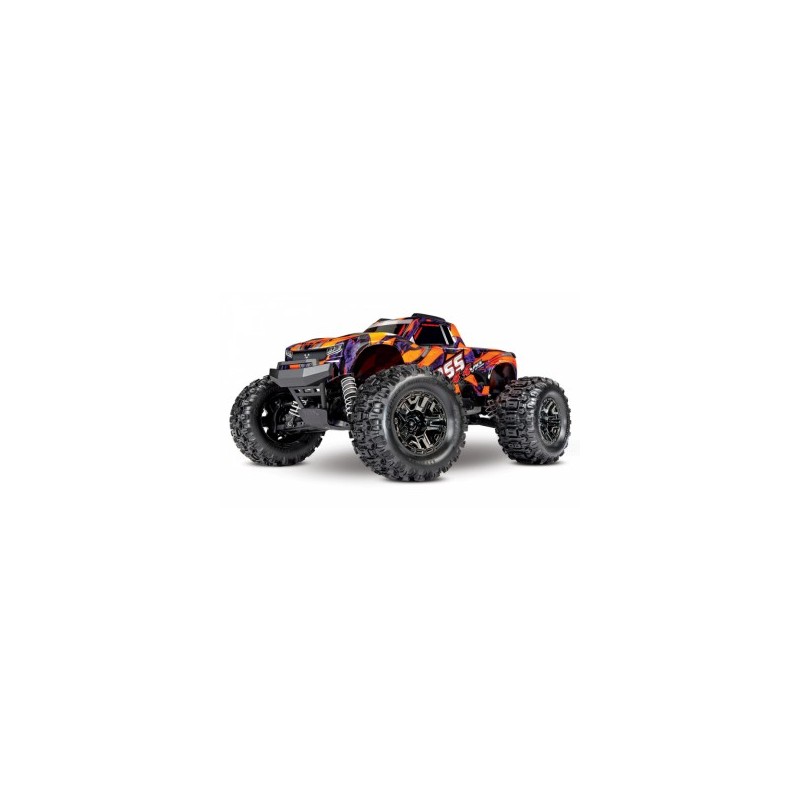

Traxxas HOSS 4x4 VXL Monster Truck - ORANGE Graphics

MEET THE ALL-NEW HOSS 4X4 VXL!
The all-new Hoss 4X4 VXL unleashes extreme monster truck fun with the power and speed only Traxxas can deliver. Grab a fistful of throttle and the huge Velineon 540XL motor delivers a massive torque punch to wheelie on command, and then keeps pouring on the thrust for a 96+ KPH top speed. The Torque Biasing Center Drive and heavy-duty shaft-driven 4WD system transfers maximum power to the ultra-aggressive Sledgehammer™ tires. It’s built to absolutely shred any terrain, from dirt and sand to mud and snow. Pitch Hoss hard and fast into a turn and Traxxas Stability Management goes to work behind the scenes to help keep you solidly on track while you’re blazing new trails. Non-stop fun and performance always come first, so Hoss stays true to the Traxxas heritage of rugged strength and durability which is engineered into every component. Drive harder, go faster, hang tougher— Nothing stops the Hoss!

540XL TORQUE
For those who believe “there’s no replacement for displacement,” Traxxas has built a monster truck for you. The new Hoss 4X4 VXL packs the same Velineon 540XL brushless motor found in the Maxx extreme monster truck. It’s the largest motor we’ve ever offered in a truck this size. The Velineon VXL-3s speed control rolls out the power smoothly utilizing large 6.5 mm connectors and an integrated cooling fan for fast, reliable fun.

EXTREME SLEDGEHAMMER GRIP
The Hoss VXL 4X4 relies on huge Sledgehammer tires to put its massive torque to the ground. The 5.3-inch tall Sledgehammers lift the Hoss skyward for superior ground clearance and a menacing stance. The open-block tread design clears away mud and debris for unrivaled traction on loose surfaces. Sledgehammer tires come pre-glued with performance foam inserts and they’re TSM-rated for speeds of 60mph and beyond!

ROCK-SOLID DRIVETRAIN
A conventional 4-wheel drive system may work for your average RC truck, but average isn’t in the Traxxas vocabulary. We pored over every inch of the Hoss’ drivetrain, strengthening critical areas to handle the 540XL’s immense power. A Torque-Biasing Center Drive outfitted with a steel spur gear replaces a traditional slipper clutch along with a tough aluminum center driveshaft and beefed-up extreme-duty axles. The resulting Hoss drivetrain is a model of both efficiency and brute strength.

HOSS 4x4 VXL Data:

• Length: 514mm
• Width: 333mm
• Ground Clearance: 70mm
• Weight: 2.9kg (without batteries)
• Height: 212mm
• Wheelbase: 295mm
• Front Shock Length: Long
• Rear Shock Length: XX-Long
• Tires (pre-glued): 133mm Diameter Sledgehammer™
• Wheels: 2.8 inches (71mm) Black Chrome
• Speed Control: VXL-3s™
• Motor (electric): Velineon® 540XL Brushless
• Transmission: Single speed with Torque-Biasing Center Drive
• Overall Drive Ratio: 10.99:1
• Differentials: Sealed, 2-gear
• Chassis Structure / Material: Modular composite tub
• Brake Type: Electronic
• Drive System: Shaft driven 4WD
• Steering: Dual bellcrank with integrated servo saver
• Radio System: TQi™ 2.4GHz 2-ch transmitter with #6533 TSM receiver
• Servo: Waterproof #2075
• Top Speed (optional gearing): 96+ kph with 3-cell LiPo and 23/50 gearing
• Skill Level: 2
• Battery Compartment: 162 x 50 x 26mm

*35mm with optional battery strap (included)

Velineon 540XL Motor Data:

• Type: Sensorless Brushless 2400Kv
• Weight: 317g
• Length: 91mm
• Diameter: 36mm
• Connector Type: Traxxas 6.5mm bullet connectors

Velineon VXL-3s ESC Data:

• Input Voltage (cells): 7.2V (6–9 cells NiMH) or 2–3S LiPo
• Case Size: 56 x 39 x 45mm
• Weight: 109g
• BEC Voltage: 6.0 V
• Reverse Delay: Yes, with lockout
• Thermal Protection: Two-stage thermal shutdown
• Ports: Auxiliary fan

What’s In The Box:

• Hoss 4X4 VXL with Velineon® VXL-3s and 540XL
• Quick Start Guide
• TQi™ 2.4GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries: Hoss 4X4 VXL requires a single 8.4v NiMH or 2-3s LiPo battery
• Charger: Traxxas EZ-Peak Live charger (#2971) is recommended for easy and fast charging performance
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
